MUSIC HALL MMF-1.5 TURNTABLE | MUSIC HALL

$799.00

PHONO STAGE BUILT-IN
BELT-DRIVE TURNTABLE
VIBRATION DAMPING FEET
REAL CHERRY WOOD VENEER

In stock

SKU: MUSIC HALL MMF-1.5 TURNTABLE Categories: , Tag:
SHARE

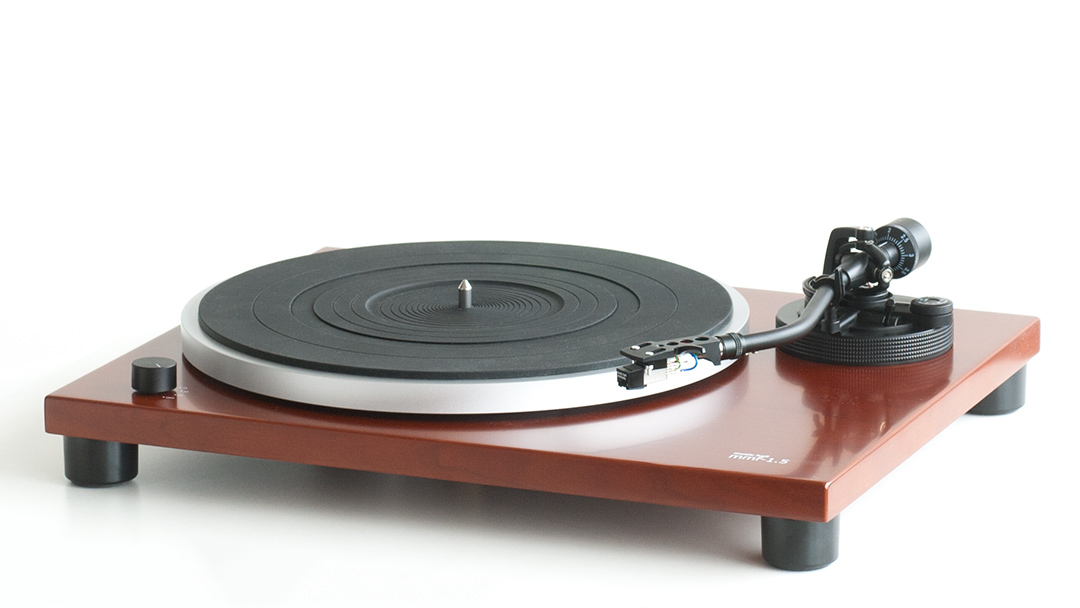

MMF-1.5 TURNTABLE

The stunning mmf-1.5, with its superior s-shaped alloy tonearm, music hall melody cartridge, 3-speed belt drive design, and built-in phono pre-amp, is a beautifully refined piece.

In The Groove

From the first music note to the final fade-out, the music hall mmf-1.5 sets your world to groove and your feet to dance.

A Complete Package

A built-in phono preamplifier allows you to connect directly to your current system. A top-quality music hall melody cartridge comes pre-mounted and precision-aligned.

Brand

TURNTABLE SECTION

.

Motor

DC Motor

Driving Method

Belt Drive

Turntable Platter

305mm Dia. Aluminum Die-Cast

Speeds

33 1/3, 45, And 78rpm

Wow And Flutter

Typical: Less Than 0.1% Wtd
At 3khz Rms(Cd-4005)
Limit: Less Than 0.15% Wtd
At 3khz Rms(Cd-4005)

S/N Ratio

Typical: More Than 65db (Din-B) (Ss-4242)
Limit: More Than 62db (Din-B) (Ss-4242)

Speed Tolerance

3000hz +/-1%(Cd-4005)

CARTRIDGE SECTION

.

Stylus

Diamond Stylus

Phono Output Level

1.5~3.6 Mv At 1khz 5cm/Sec (Cd-4005)

Line Output

90-216 Mv At 1khz 5cm/Sec (Cd-4005)

Riaa

20hz~20khz: +1/-3 Db

Cartridge

Music Hall Melody

Output Voltage

2.5mv +/- 3db At 1khz 3.54cm/Sec

Channel Separation

Measurement Point 1khz Over 18db

Channel Balance

25 Db Or Less At 1khz

Frequency Response

Measurement Point 10khz / 1khz 0 +/- 3db

Tracking Force

2.0 +/- 0.5 Grams

TONEARM SECTION

.

Type

Static Balanced S-Shaped

Effective Arm Length

230mm

Overhang

15mm

Offset Angle

22 Degrees

Tracking Error Angle

3 Degree Or Less

Stylus Pressure Adjustment Method

Rotation Movability (1-Rotation 4g)

Applicable Cartridge Weight

5~8.5g (Including Headshell 15~18.5g)

Anti-Skating Adjustment Range

0~3g

Arm Lifter

Oil Damper Type

Height Of Stylus

8~10.5mm

Lifter Descent Time

1.5~3 Sec (Stylus Pressure: 2g)

Horizontal Sensitivity

Less Than 0.2g

Vertical Sensitivity

Less Than 0.2g

GENERAL

.

Power Supply

DC12v,2.0a Universal Power Supply

Consumption

4W

Dimensions

17.1(W) X 14.5(D) X 5(H) In.
435(W) X 367(D) X 127(H) mm

Weight

12lbs., 5.4kg
