AMC: 25100MKII

25100MKII-5 – High Current Power Amplifier | AMC

$1,599.00

Description

AMC Power Amplifiers Designed from the ground up, High Current
Amplification that you would only find in brands 3 times the price.
100 Watts True RMS Power per Channel, with 140Watts RMS Power per
Channel at 4 Ohm Driven, this amplifier is by no means a toy!

3 Year
Warranty Australia Wide, with Total Current Rating at 100 Amps, you will
drive large speakers with no hassle. AMC is a brand that build products
for most high end brands currently out there, with the design and
reliability philosophy of 25 years, you can go past this big boy if you
are starting a hifi or multi-channel home cinema system.

Simple and Precise

These are the terms used by our customers to describe the 25100MKII , 5 channel amplifier from AMC.
Amplifiers reproducing these dynamic signals must do so without
interfering with each other. In high quality amplifiers, circuit design
is critical in order to achieve maximum performance and exceptional
sound. Each output of the amplifier is powered by an independent “Power
Module”(tm). Each module is identically constructed, allowing completely
independent management of signals from input to output.
This concept enables each channel to monitor heat, current, signal, and
power separately, thus greatly reducing crosstalk and increasing dynamic
range and efficiency. The Power Module utilizes a unipolar output
insuring proper phase and matching between channels. The Power
Module(tm), design utilizes high current output devices in conjunction

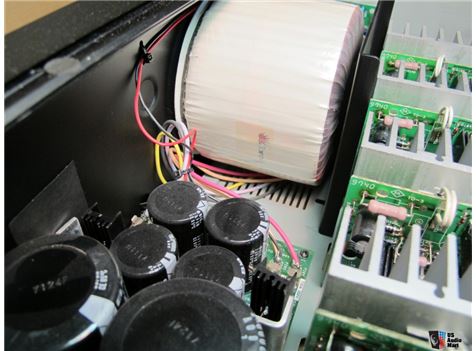

with a com-mutating, or dual voltage power supply and over sized
toroidal transformer that in combination, delivers up to 20% more power
than normal amplifiers of the same size. The 25100MKII amplifier is
capable of delivering massive amounts of power into low impedance loads
exhibited by virtually all modern loudspeakers.

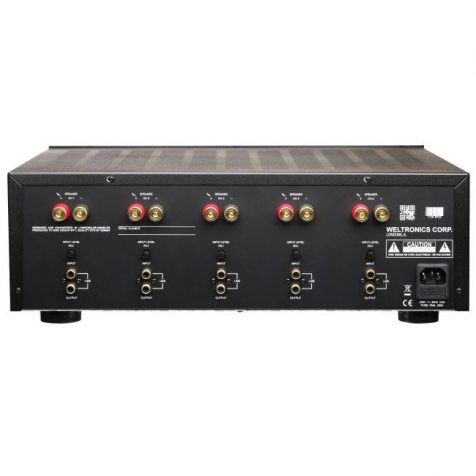

The 25100MKII Series amplifier uses high quality speaker binding posts
that can accommodate large gauge speaker cables or banana plugs. Input
jacks are supplied with attenuation pots to adjust perfectly the right level per speaker.

Brand

AMC

AMC Amplifiers - THE Power Amps

Designed with a 25 Year, operation with out fail philosophy, AMC amplifiers are High Quality Hi Fidelity Sound System components that can form part of any home or commercial sound system. This includes Multi-Room Electronic products. AMC amps provide the quality sound you want, without an inflated price tag.As a manufacturer of some of the worlds high end stereo components, you can be rest assured that AMC amps are built to last, look great and will perform at their best, long term.

Rated Power into 8 ohm / 4 ohm (IHF) 100W / 140W
Rated THD and IMD <0.03%
Clipping Power into 8 ohm / 4 ohm 110W / 160W
Dynamic Power into 8 ohm / 4 ohm 160W / 230W
Current limit into 0.1 ohm and 1 ohm 25 Amps / channel
Damping factor >180
Input sensitivity for 100W output power into 8 ohm 1 Vrms
Input Impedance 22K ohm / 150 pF
Frequency Response
20Hz-20KHz +/-0.3dB
-3dB <5Hz&>110KHz
Signal to noise ratio (“A” wtd.) (ref. 1W / 8 ohm) >100 dB
Separation 20KHz >70 dB
Dimensions (W x H x D) 432x152x330 mm
Net weight 16.3 Kgs.
