Tonewinner 11 ch home theatre audio best pure power amplifier

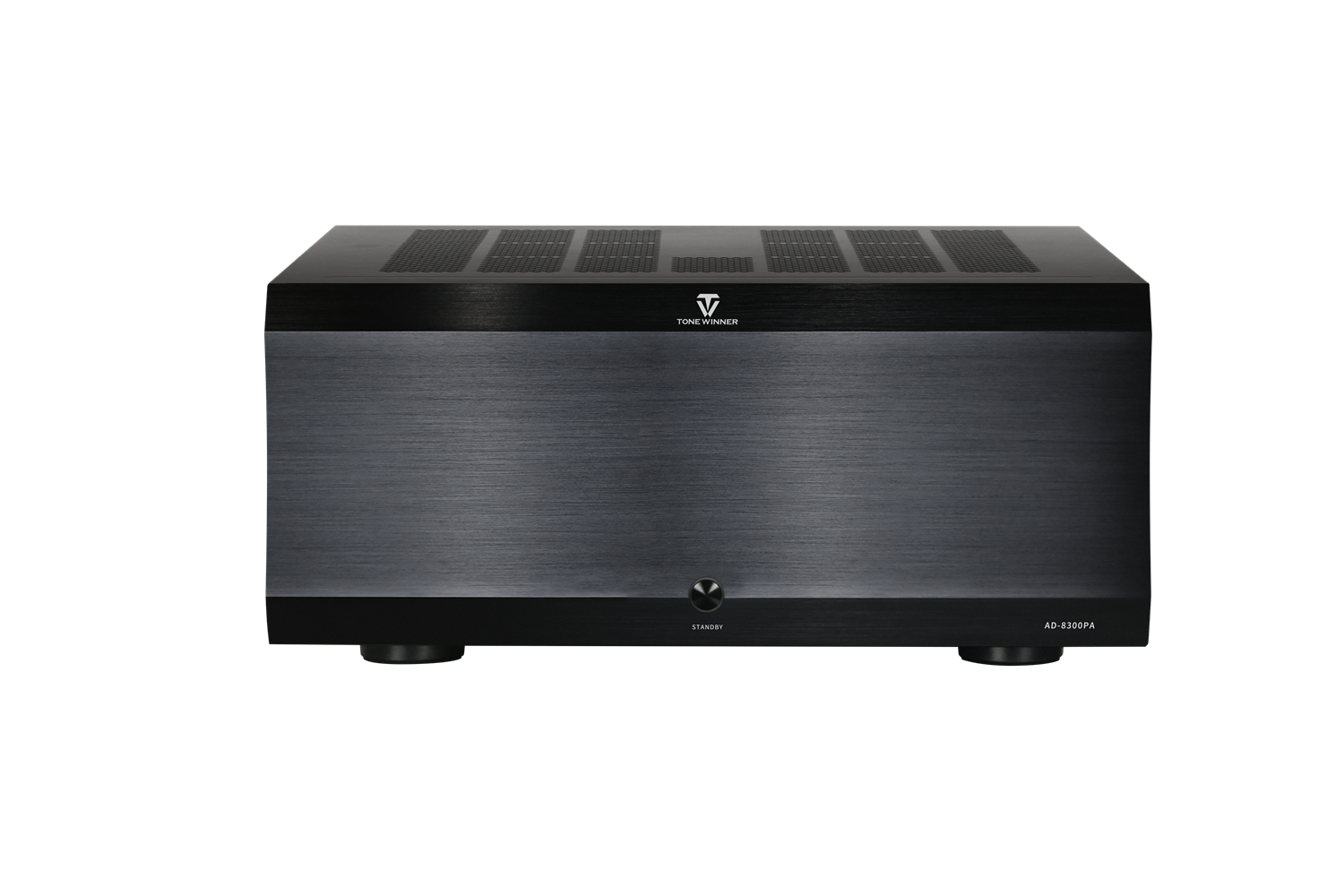

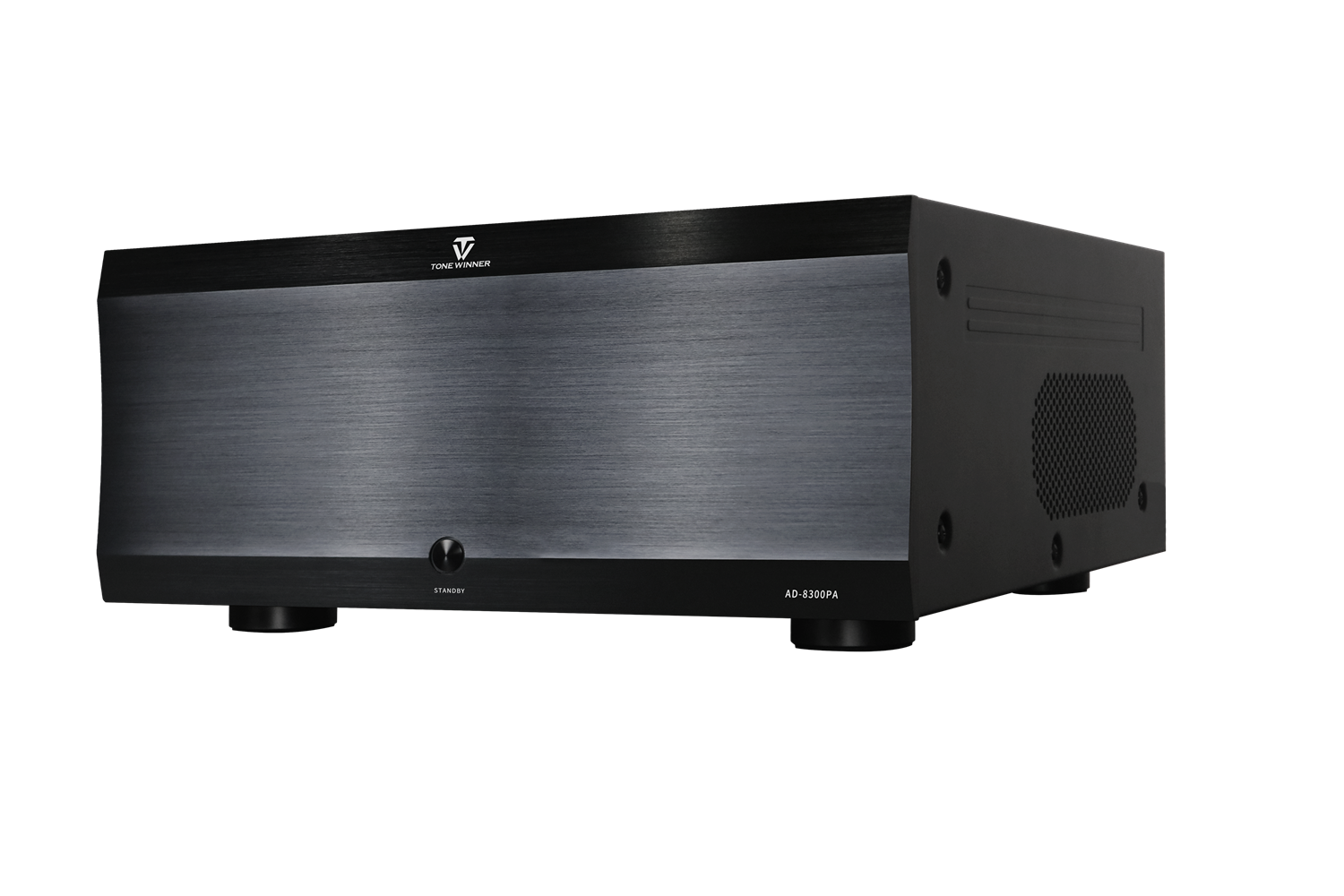

AD-8300PA is an 11 channels high power audio home theater amplifier with special output power design, which offers 320W/8Ω for left, right & center channels, and 150W/8Ω for the other eight channels. It takes the advantages of different circuits to achieve low distortion and low power consumption, and works better in home theater with high sound pressure & dynamic range.
AD-8300PA
11 Channels High Power Amplifier
AUDIO SPECIFICATIONS (HIGH-POWERED SINGLE CHANNEL MODULES): LCR CHANNELS & SURROUND CHANNELS
LCR Channels 350 Watts & LS,RS,LBS,RBS 155 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven
LCR Channels 605 Watts & LS,RS,LBS,RBS 276 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven
LCR Channels 320 Watts & LS,RS,LBS,RBS 150 Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; Two channel driven
LCR Channels 516 Watts & Surround Modules 207+ Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; Two channel driven
LCR Channels 240+ Watts & Surround Modules 105+ Watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; all channel driven
Five Circuit Protections
It adopts five types of circuit protections to make sure safe operation and long-term reliable working.
5V Trigger
It supports 5 volts trigger in & out to connect with other devices to achieve smart synchronous control.
3000W Digital Power Supply
It supports up to 3,000 watts switched mode power supply to ensure powerful driving for multiple entertainments including dynamic movies and music.
11 CH Independent Amp Circuits
It adopts independent Hi-Fi circuit modules for all 11 channels, which works with high power transistors to offer 45A current output.
Overcurrent Protector
The overcurrent protector of the back panel is designed to avoid damage from overcurrent, overvoltage and short circuit. Just press the protector button for fast restoration after tripping.
Air Cooling System
It adopt fans air blowing to dissipate heat and expand the lifetime of components for long term service.
Hi-Fi Circuit
It adopts classic differential circuits which do good characteristics of low distortion, low noise and high dynamic range to represent trilling scenes.

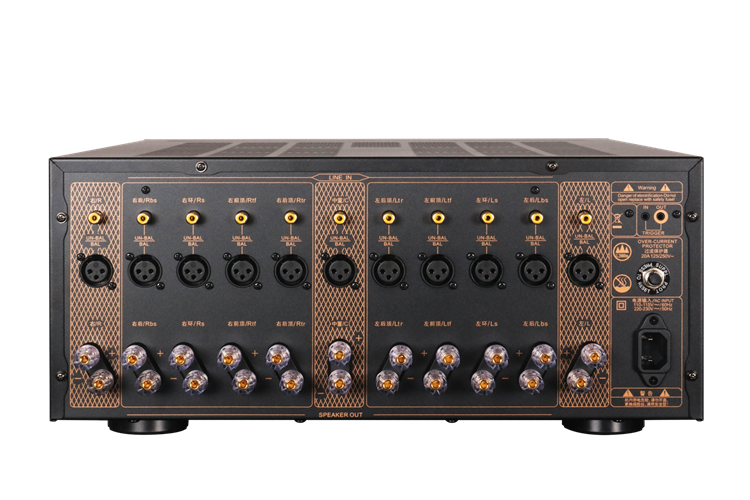

Balance/Unbalance Input
It supports both RCA and XLR inputs to connect to more devices for different entertainment including movies, music, singing and gaming.
