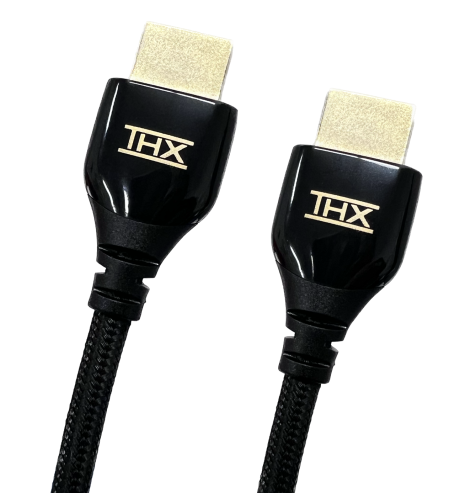

THX PIXELGEN INTERCONNECT 2 METRE ULTRA HIGH SPEED HDMI CABLE | THX

$129.00

GOLD-PLATED TERMINALS
ULTRA HIGH SPEED
SUPPORTS UP TO 8K RESOLUTION
THX CERTIFIED

In stock

THX PIXELGEN 2M HDMI CABLE Categories: , , , Tag:
SHARE

THX ULTRA HIGH SPEED HDMI CABLE

A perfect fixed length for all applications from 1m up to 5m (using 100% Copper wiring construct). Pixelgen has designed the THX® Interconnect short-range Ultra High Speed (UHS) HDMI® cables to uphold convenient overall thinness and flexibility while maintaining standards compliance and system robustness for each length. Never leave a single HDMI link to chance.

THX® Interconnect, Short-range UHS HDMI® Cables have been designed in Canada by PIXELGEN™ in collaboration with THX® to ensure the highest level of signal integrity from a high-speed, low-speed & DC-power perspective. Each short-range THX® Interconnect cable is UHS HDMI Certified, supporting all HDMI 2.1b features, including FRL/48Gbps, 8K-10K, Dynamic HDR, eARC, and the all-new gaming-centric enhancements of VRR, ALLM, QFT & QMS.

Whether striving to master perfect symmetry within a professional rack design or simply connecting to inputs of an AVR or display, THX® Interconnect short-range UHS cables guarantee uncompressed 48Gbps signal delivery and total HDMI 2.1b transport functionality.

Brand

HDMI® Certification

Ultra High Speed HDMI® Cable (1.0m/3.3ft, 2.0m/6.6ft, 3.0m/9.8ft, 5.0m/16.4ft)
Scannable UHS HDMI® label affixed to packaging (alongside HDMI® App)

THX® Certification

Validated to THX® Certified 8K Interconnect Standards (1.0m/3.3ft, 2.0m/6.6ft, 3.0m/9.8ft, 5.0m/16.4ft)

HDMI® 2.1 Features

Video: Up to 8K-10K BT.2020 Formats (Bandwidth/format details below),
Audio: eARC (Enhanced Audio Return Channel), Dolby Atmos, Dolby TrueHD, DTS:X, DTS Master
HDR: Dynamic (and Static) HDR, SBTM (Source-Based Tone Mapping)
Gaming: VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching)
Control: CEC (Consumer Electronics Control), HEC (HDMI Ethernet Channel)
Note: Backwards compatible to all previous HDMI standards

HDCP (High-bandwidth Digital Content Protection)

HDCP 2.2 & 2.3 (backwards compatible to HDCP 1.4)

FRL6 (48Gbps) Formats Supported

8K60 4:2:0 12-bit, 8K30 4:4:4 12-bit
4K120 4:4:4 12-bit

FRL5 (40Gbps) Formats Supported

10K60 4:2:0 8-bit, 10K30 4:2:2 8/12-bit, 10K30 4:4:4 8-bit
8K60 4:2:0 10-bit, 8K30 4:4:4 10-bit
5K120 4:2:2 8/12-bit, 5K120 4:4:4 8-bit
4K120 4:4:4 10-bit

FRL4 (32Gbps) Formats Supported

10K30 4:2:0 10/12-bit
8K60 4:2:0 8-bit, 8K30 4:2:2 8/12-bit, 8K30 4:4:4 8-bit
5K120 4:2:0 10/12-bit, 5K60 4:4:4 10/12-bit
4K120 4:4:4 8-bit, 4K120 4:2:2 8/12-bit

FRL3 (24Gbps) Formats Supported

10K30 4:2:0 8-bit
8K30 4:2:0 10/12-bit
5K120 4:2:0 8-bit, 5K60 4:2:2 8/12-bit, 5K60 4:4:4 8-bit
4K120 4:2:0 10/12-bit, 4K120 4:2:0 10/12-bit

FRL2 (18Gbps) Formats Supported

8K30 4:2:0 8-bit
5K60 4:2:0 8/12-bit, 5K30 4:2:2 8/12-bit, 5K30 4:4:4 8/12-bit
4K120 4:2:0 8-bit, 4K60 4:2:0 10/12-bit, 4K60 4:2:2 8/12-bit, 4K60 4:4:4 8/12-bit, 4K30 4:4:4 10/12-bit
1080p120 4:4:4 10/12-bit

FRL1 (9Gbps) Formats Supported

4K60 4:2:0 8-bit, 4K30 4:2:2 8/12-bit, 4K30 4:4:4 8-bit
1080p120 4:2:2 8/12bit, 1080p120 4:4:4 8-bit

Mechanical/Construction

Cable OD (Outer Diameter): 1m-2m: 5.2mm (34AWG FRL x 8), 3m: 6.1mm (30AWG FRL x 8), 5m: 8.0mm (26AWG FRL x 8)
HDMI Plugs: Gold-plated
HDMI Casing: Molding PVC Black
Retention Force (max): 3kg/6.6lbs
Bend Radius: 25mm (1.0 inch/34AWG)
Internal Wire Construction:
8C (4 x High-speed differential FRL pairs)
2C (1 x HEAC/eARC differential pair)
3C (3 x 'DDC-SDA', 'DDC-SCL' & 'CEC')
1C (1 x '+5V')

Regulatory Compliance

EMI/EMC/Safety: CE, UL
Environmental: RoHS, WEEE
ESD Rating: 8kV contact (IEC 61000-4-2 Level 2)
Lead-free (Pb-free)

Warranty

Lifetime Warranty*
