CANTON: REFERENCE 5K

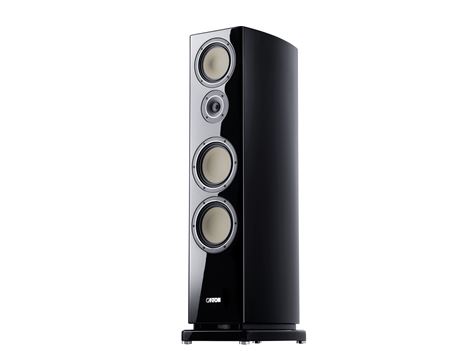

CANTON REFERENCE 5K – HIGH END FLOORSTANDING SPEAKERS | CANTON

REFERENCE K
HAND BUILT
INDIVIDUALLY NUMBERED
MADE IN GERMANY

$14,999.00

Description

CANTON REFERENCE SPEAKERS – HAND CRAFTED IN GERMANY

Reference K Series

The Reference K Series marks the beginning of a new age of sound. Characterised by the classic virtues of the Reference family, a constant drive for innovation and a focus on the fundamental elements of sound,
it strives for ever greater perfection. A perfection that is achieved in an impressively practical way.

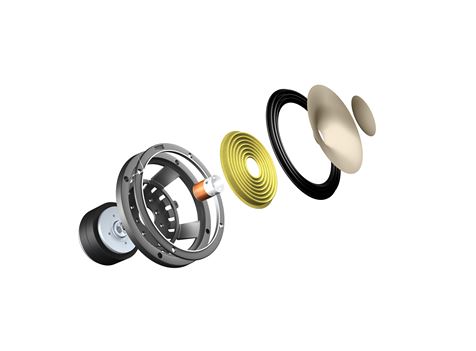

Innovative driver technology

The drivers of the Reference K Series have been comprehensively redesigned. To maximise their rigidity while maintaining optimum internal damping, the woofer and midrange cone drivers are now also fitted with a ceramic-tungsten membrane. Not only does this enhance their outward appearance, but it also ensures a precisely controlled swing-in and swing-out behaviour across the whole transmission range. The natural resonance is therefore always outside the transmission range.

Reference_K_Mitteltoener

Ceramic-tungsten technology

The membranes of the K Series are manufactured in an elaborate process. Up to 20 % of the existing molecular structure of the aluminium cone is transformed into a ceramic structure and refined with tungsten particles. The result is a membrane with an optimum ratio of rigidity to weight and improved inner damping.

Reference_1K_schwarz_Anschluesse58b7fe2fa8e37

Connection terminal

The high quality connection area with four gold-plated screw clamp terminals is suitable for cable diameters up to 10 mm² and special cable shoes. This provides secure connections Crossovers with long-term stability.

Reference_1K_schwarz_links_oben58b7fe3023322

Solid cabinet design

The acoustically optimised cabinet with its organic curved baffle offers significantly improved dispersion characteristics. The solid construction of high quality 50 mm multi-layer laminate sets new standards in terms of stability. The characteristic bow shape of the cabinet is created from solid material in a special process.

Reference_K_Frequenzweiche_158b7f82e956a2

Crossovers

The crossovers of the Reference 1 K and 3 K speakers discreetly separate the bass, mid-range and treble ranges. Only selected components with no tolerance are used in the manufacture of their low-resonance circuit boards. Here it is not just a matter of separating an audio signal but also of creating sounds.

Reference_K_Sockel58b7f82e486eb

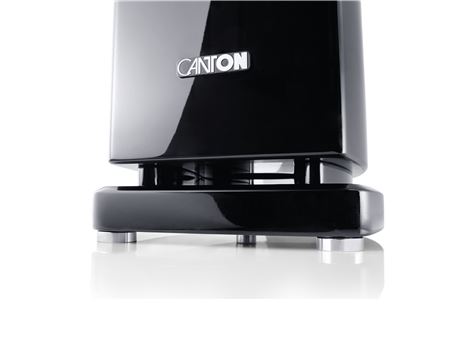

Bass-Guide

The floorstanding loudspeakers of the Reference K Family operate with the new Bass-Guide® bass reflex system. Vibrations are directed away from the cabinet and flow noise is reduced. The usable inner volume of
the loudspeaker is maximised while the external dimensions remain the same and there is greater flexibility in the set-up location. The distance from walls or corners no longer has much impact.

karat_jubilee3_cantolink5613735212d4758b925b5a6661

Exclusive cabling

Cabling is reduced to a minimum. The cables themselves are specially developed for the Reference K loudspeakers. The design, with its special core and six twisted individual conductors per phase, ensures optimum sound transmission from the connection terminal to the chassis.

Reference_1K_schwarz_AB58b7fe307f2d4

Surfaces

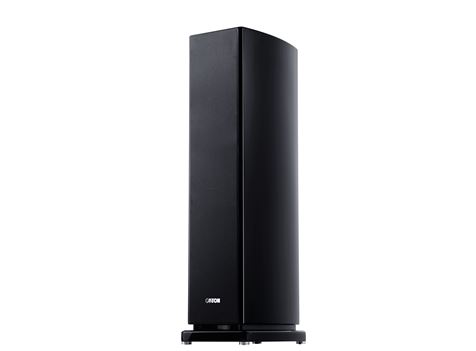

The elegant, high gloss, “piano finish” surface is applied and polished in a 12- stage process. It gives the cabinets of the Reference K Series a sensation of extraordinary depth. Acoustically optimised, two-part fabric covers with magnetic fastenings complete the exclusive look.

Reference_K_Auftritt_pianofinish

Manufacturing quality

We develop and manufacture the loudspeaker systems of our Reference K Series in our own workshops. This is the only way we can satisfy the quality standards required, eliminate fault tolerances and achieve the high sound perfection of our premium products.

Brand

CANTON

CANTON SPEAKERS

CANTON since 1970 have been handcrafting their speakers and cabinets in Germany. Now available here in Australia, these speakers are truly a piece of workmanship and sound quality like no other. Experience CANTON in one of our showrooms or buy now online.

Additional information

Price Bracket

12000-14000

REFERENCE 5K

SPECIFICATIONS
TypeHigh-End Floorstanding Speaker
Engineering Principle3-Way, Bass reflex system
Nom. /Music power handling280 / 440 watts
SPL (1 watt/1m)88.5 dB
Nominal Impedance4...8 ohms
Frequency response20...40.000 Hz
Crossover frequency220 / 3.000 Hz
Speaker CompositionWoofer 2 x 200 mm, ceramic tungsten (Wave-surround)
Midrange 1 x 180 mm, ceramic tungsten (Wave-surround)
Tweeter 1 x 25 mm, Aluminium oxyd ceramic
Special FeaturesBase construction with Bass-Guide®
High-End cable system
Gold plated bi-wiring/bi-amping screwclamp terminals
DC-technology
Fabric grill with magnetic mount
Warranty5 years
Dimensions (WxHxD)30.5 x 107.5 x 44.5 cm
(12 x 42.3 x 17.5)
Weight37 kg
