MMF-7.3 TURNTABLE

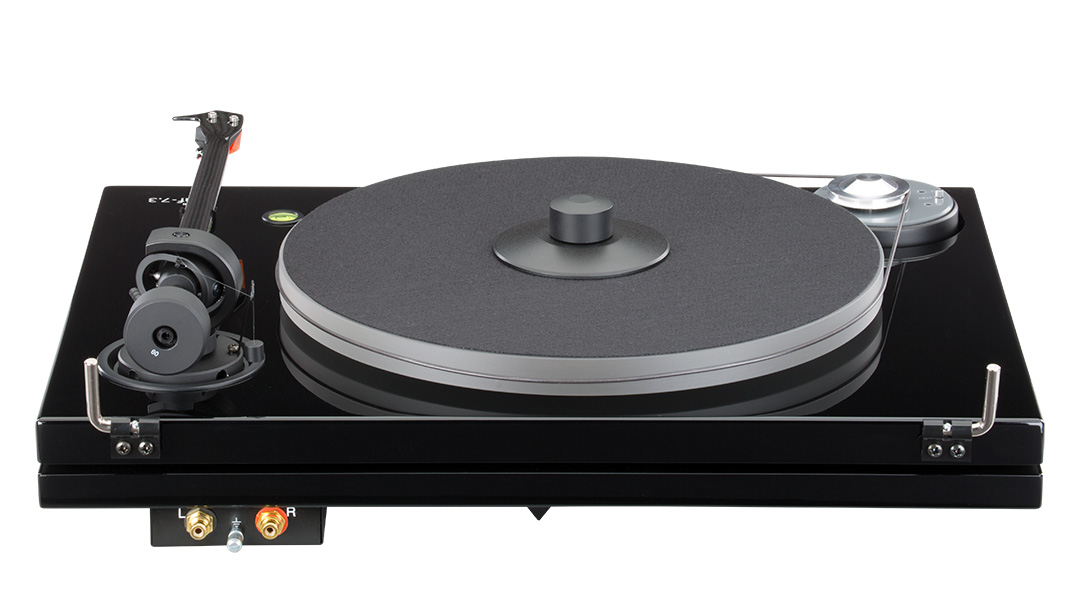

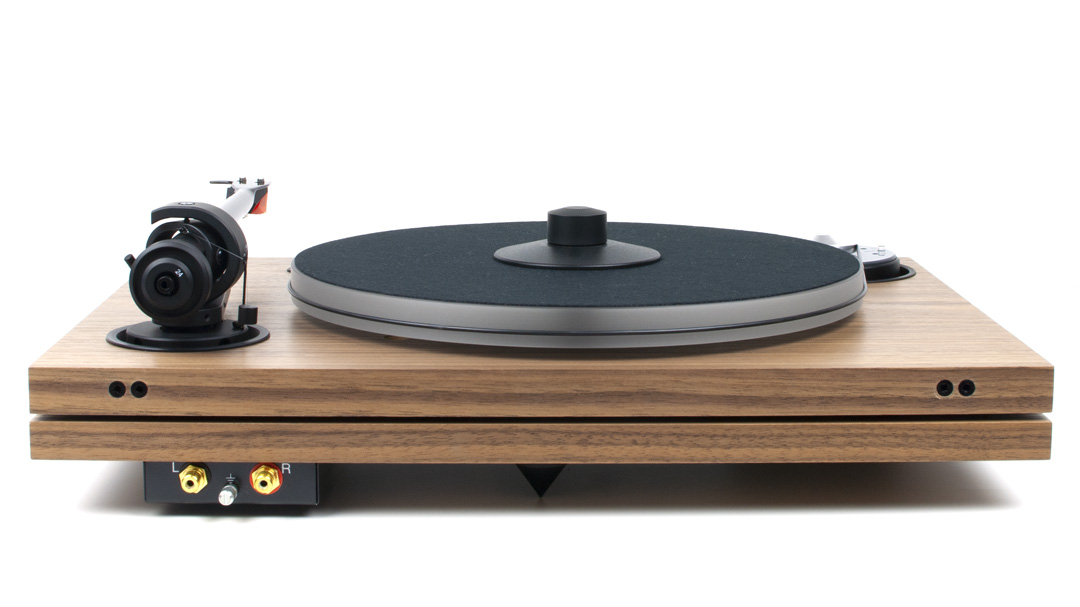

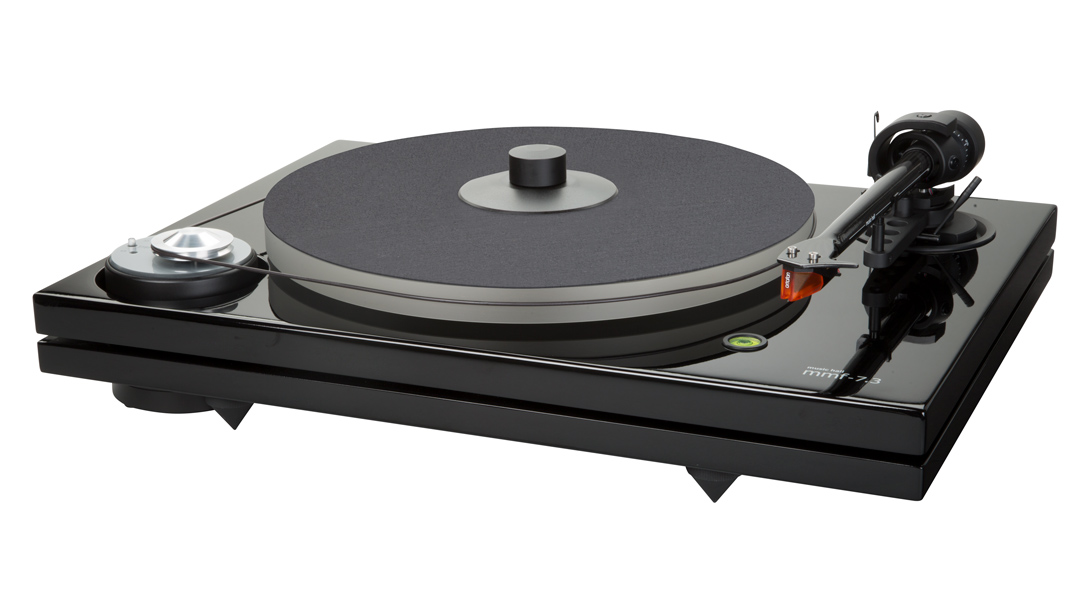

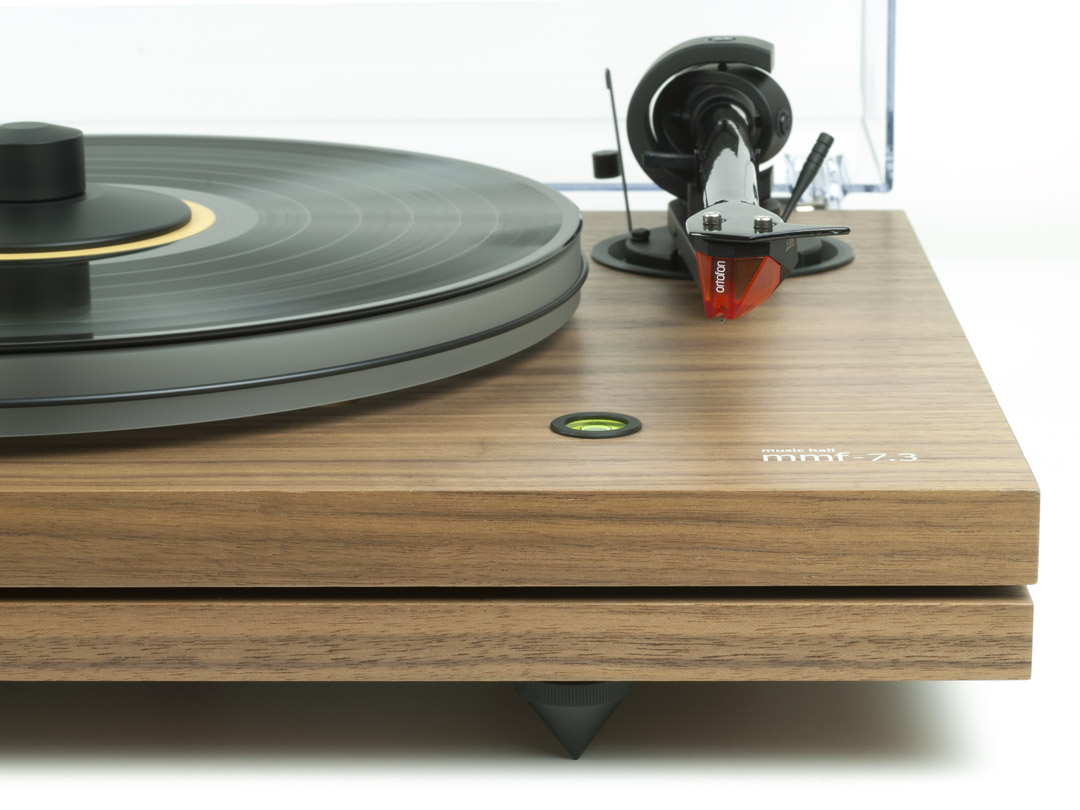

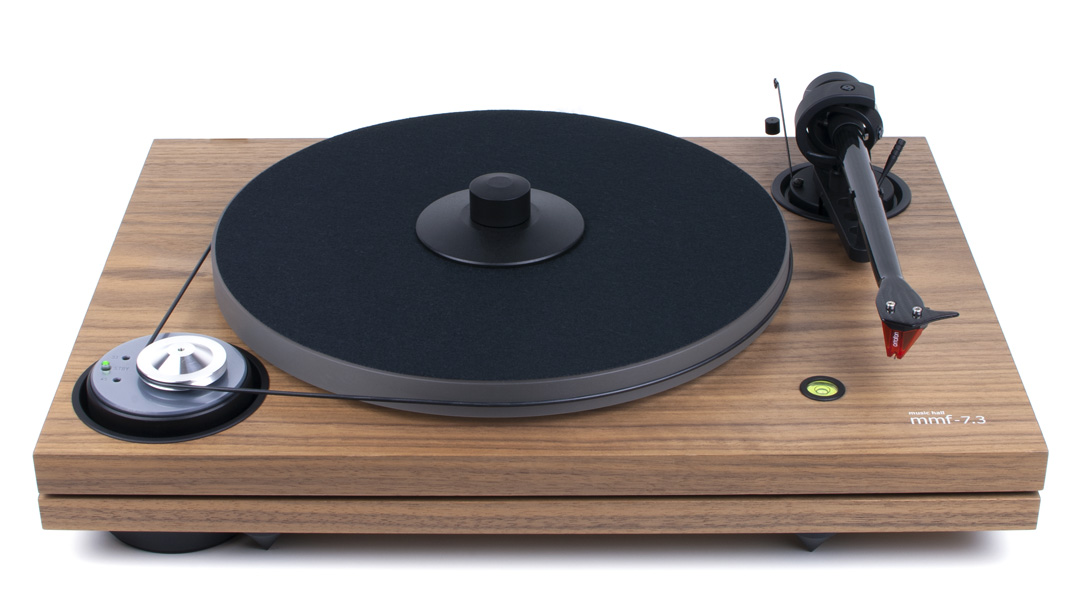

The music hall mmf-7.3 turntable is a 2-speed belt driven audiophile turntable employing the unique dual-plinth construction originated by music hall.

Distinctive Design

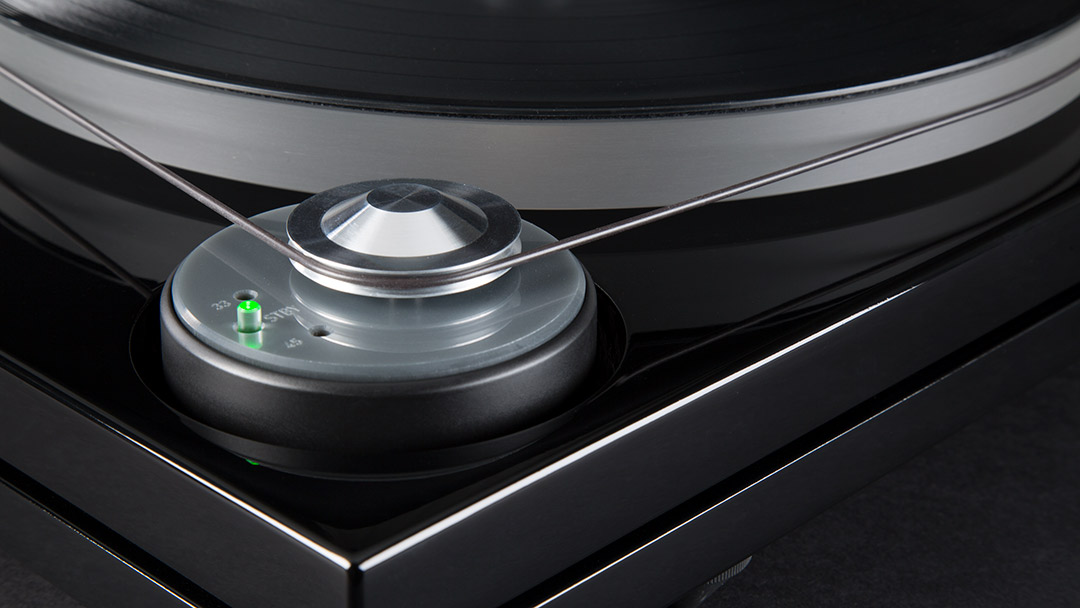

The distinctive design of the mmf-7.3 isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the adjustable tip-toe feet which are mounted on the bottom platform. The motor speed controls, and wiring are isolated on their own platform and completely decoupled from the turntable.

Brand

Power Supply

15V / 0-0.8mA DC, universal power supply

Power Consumption

4W / 0W in stand-by

Standby Power Consumption

< 1 W

Speeds

33 ⅓ rpm (manual change to 45 rpm)

Wow And Flutter

±0.10 %

Speed Deviation

± 0.06%

Rumble Max

> -73 db

Effective Tonearm Length

9.0 in (22.86cm)

Overhang

18mm

Product Dimensions

(W x D x Hw/dust cover closed) 18.25 x 13.25 x 5.5 in (46.4 x 33.7 x 14 cm)

Weight

24lbs (10.9 kg)

CARTRIDGE SPECIFICATIONS

.

Cartridge

Ortofon 2M Bronze

Output

5.5mV, 1kHz @ 5cm/sec

Frequency Response

20-20.000 Hz + 2 / – 0 dB

Channel Balance

1dB @ 1kHz

Channel Separation

26dB @ 1kHz
15dB @ 15kHz

Frequency range at - 0dB

20-20.000 + 2 Hz

Vertical Tracking Angle

20 degrees

Stylus Type

Nude Fine Line
Radius: r/R 8/40 μm

Tracking force range

1.4-1.7 g (14-17 mN)

Compliance, dynamic, lateral

22 µm/mN

Cartridge Weight

7.2 g

Internal impedance, DC resistance

1.2 kOhm

1.2 kOhm

630 mH
