M&K Sound
THX Dominus
“M&K took on a lofty task to design the highest performance and most powerful in-wall speaker for ultra-high fidelity in expansive home and private spaces of up to 6,500 cubic feet in size, and with up to a 20-foot viewing distance from the screen.”

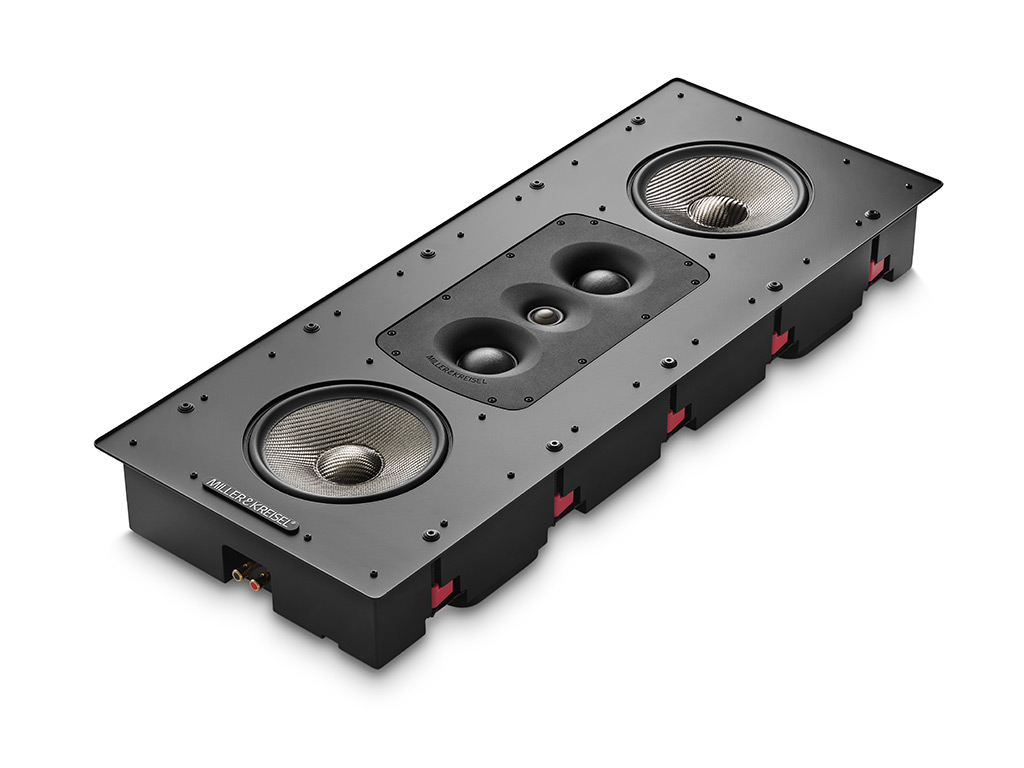

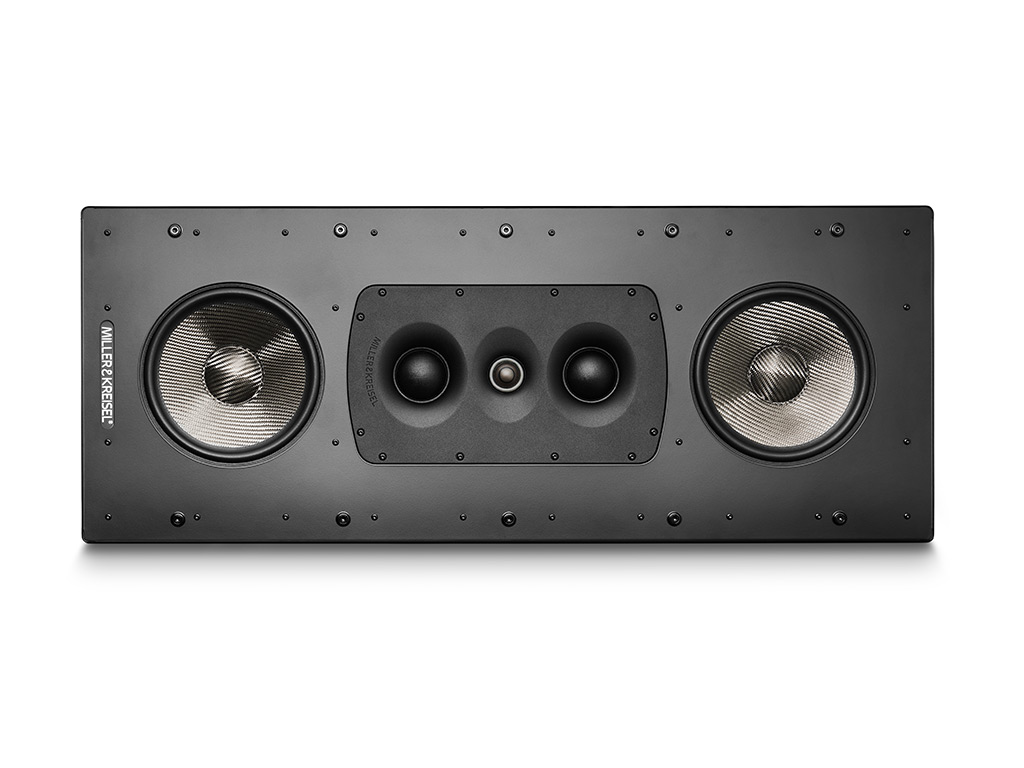

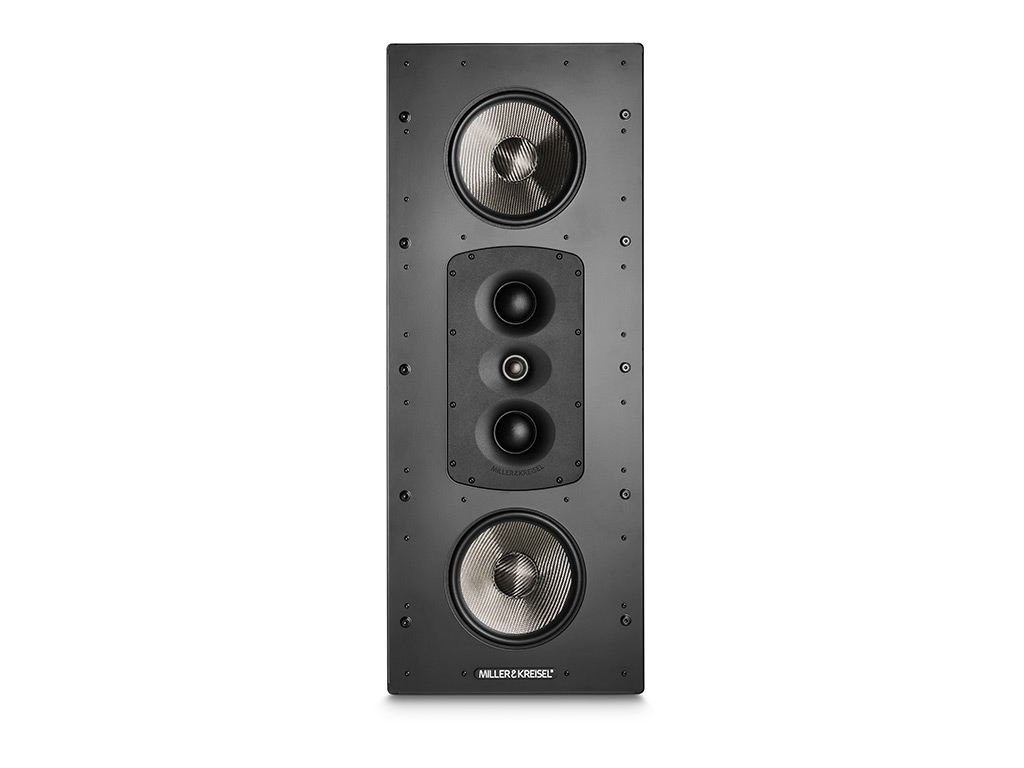

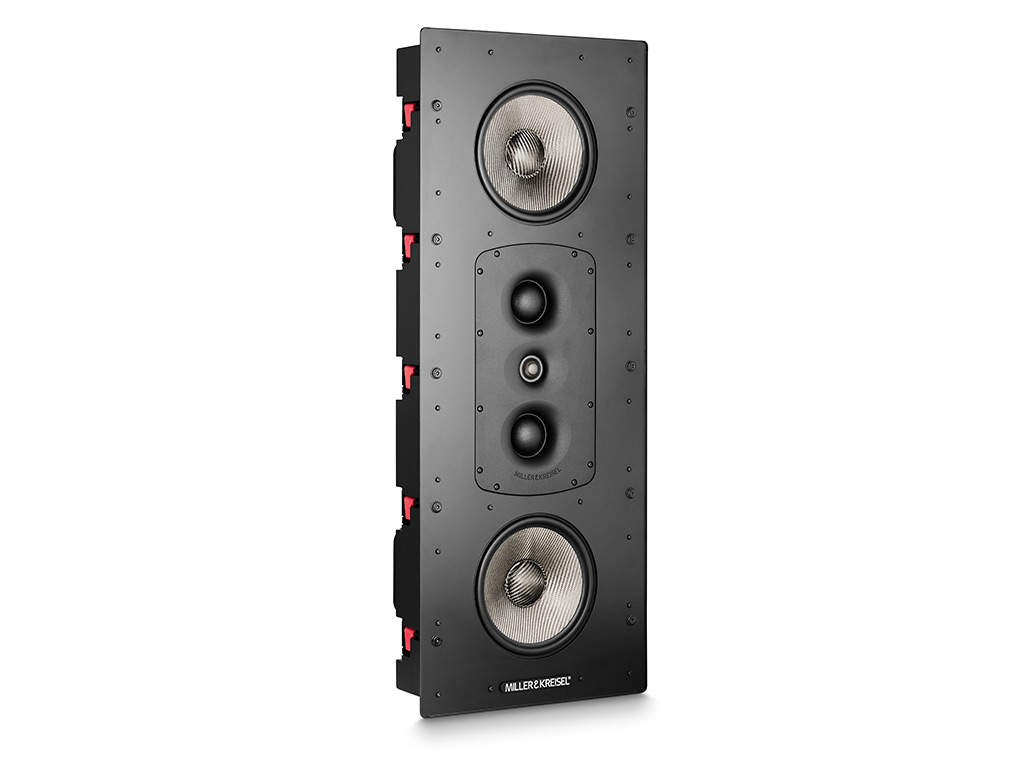

The first THX® Certified Dominus in-wall loudspeaker for very large home cinemas with both vertical and horizontal installation flexibility
M&K Sound has combined a high-performance one-inch soft dome tweeter with a precision-crafted aluminum waveguide to ensure accurate and focused vertical and horizontal dispersion characteristics. The design marks the first time M&K Sound has developed a horn-loaded loudspeaker which guarantees real and natural delivery, whether placed vertically or horizontally.
The IW500 combines two Kurt Muller three-inch soft dome midrange drivers (800 Hz to 2500 Hz) with shallow waveguides. These pair with a complex crossover network to promote an audible smoothness and non-fatiguing character across the frequency range. By consolidating excellent vertical response from the crossover with excellent horizontal dispersion from the vertical driver array, the IW500 produces a profoundly flat power response.
The IW500’s onboard dual 8-inch woofers employ large magnets and carbon fiber cones to achieve its high sensitivity rating (92 dB SPL @ 1 meter with 2.83V), enabling a full-bodied and visceral low-frequency response. M&K Sound’s proprietary ‘Capacitive Coupling’ design feature in the crossover allows for a much smaller enclosure than normally required. It also ensures tighter bass response, increased impedance (easier to drive) and less distortion.
The IW500’s revolutionary crossover is responsible for the loudspeaker’s smooth frequency and polar responses. Transition between high, mid and bass frequencies is seamless, a trademark design feature of M&K Sound’s reference loudspeakers. The IW500 includes newly developed transducers with extra-large magnets for less compressed and less distorted sound.
M&K Sealed In-Wall Boxes
The materials, acoustic properties, assembly and volume of every M&K Sound sealed box are all known factors during system design, so that the construction of the wall, the type of materials inside the wall and the volume of air behind the speaker all have no impact on final performance. It is this extreme level of control over the interaction of speaker and wall that makes it possible for M&K Sound to offer designer-friendly, invisible installation at no sacrifice in ultimate musicality.

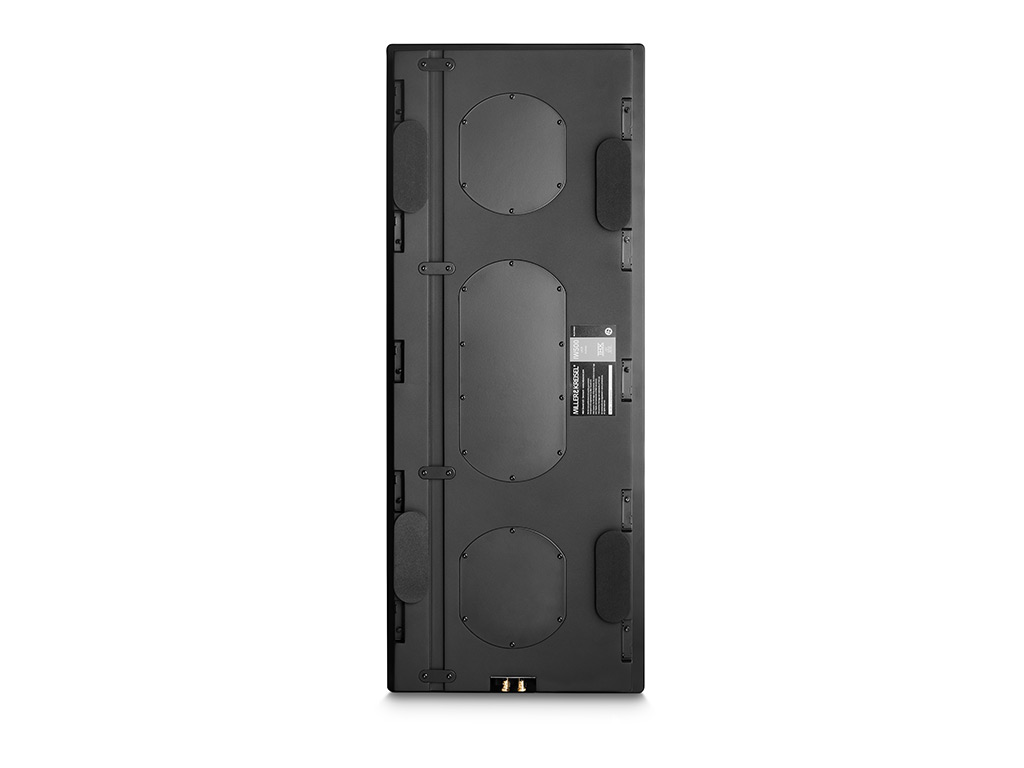

M&K Sound back boxes of 18mm MDF are painted with black structure polyurethane lacquer for moisture resistant sealed surfaces. The sealed box also provides effective protection against dust, insects and vermin. Damping pads on the rear panel eliminate vibration when in direct contact with the wall in shallow installations. All mounting hardware is pre-fitted to the box, including metal clamps to fix speaker wire in the pre-cut cable groove on the rear of the box. Gold-plated push-on terminals with +/- polarity markings allow easy cable connection without the use of tools. Torx mounting screws with special washers are used for smooth mounting along with a practical, efficient, self-tightening dog ear clamp system for a perfect seal between baffle and wall.
Every facet of M&K Sound’s enduring legacy of technological achievement is incorporated into the latest IW500 flagship loudspeaker. As each model in M&K Sound’s extensive range is timbre-matched for the ultimate sonic cohesion in any room, the IW500 can ably complement surround and height speakers from the award-winning M&K 300 and 150 Series. The IW500 now brings the sonic precision, neutrality and articulation, for which M&K is world-renowned, into the very largest of residential cinema and listening rooms.
THX
Room Size
Designed for use in high-end home theaters or Hi-Fi stereo systems, and with an 80 Hz–20 kHz (+/-1.5 dB) frequency response, the IW500 pairs ideally with one or more subwoofers (such as M&K Sound’s own THX Certified Dominus X15+ subwoofer). The new M&K Sound speaker will deliver a natural, open and articulate sound field with extraordinary high output every time. Perfect for large home cinemas and media rooms, the IW500 measures a maximum SPL of greater than 117 dB and a power amplifier handling of 100–500 watts.
