INTEGRA: DRX-2.4

INTEGRA DRX-2.4 7.2 CHANNEL AV RECEIVER | INTEGRA

or 4 fortnightly payments of $387.50 with Afterpay More info

ALL NEW INTEGRA AV RECEIVER
DOLBY ATMOS & 8K PASSTHROUGH
CHROMECAST BUILT-IN
160 WATTS PER CHANNEL
AVAILABLE FOR PRE-ORDER NOW

$1,550.00

Available on backorder

Description

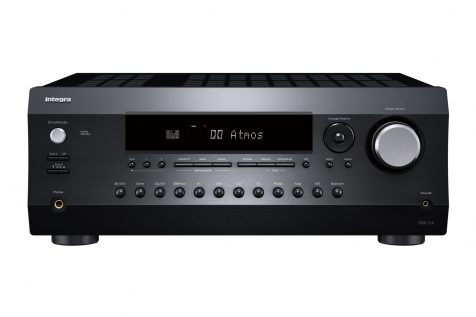

INTEGRA DRX-2.4

The all new Integra range is now available at the largest AV showroom in the world, RIO Sound and Vision. Building quality AV Receivers and 2-channel amplifiers, Integra is one of the leading brands in amplification today. Using state-of-the-art technologies, Integra design and manufacture their products to suit their customers which is why RIO are proud to bring Integra into your home.

Prepare for the 8K Cinema Revolution

High-spec HDMI® unlocks exciting features for gamers and film lovers in your family, including 8K video passthrough, HDR10+, and low-latency gameplay. Enjoy DTS:X® and Dolby Atmos® 3D soundtracks with refined Integra power and convenient voice-controllable multi-room audio.

Audio & Video Highlights

• 5.2.2-ch Dolby Atmos® and DTS:X® playback
• DTS Virtual:X™ and Dolby Atmos Height Virtualization
• Dolby Surround® and DTS® Neural:X upmixing
• HDMI®*1 supports 8K/60p (4:4:4/12-bit*2, 4:2:2/12-bit*2, 4:2:0/10-bit), 8K/30p (4:4:4/12-bit*2, 4:4:4/10-bit, 4:2:2/12-bit), 4K/120p (4:4:4/12-bit*2, 4:4:4/10-bit, 4:2:2/12-bit) video passthrough, HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
• HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD*3
• Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3;
RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)
• Separate Zone 2 speaker outputs enable 5.2.2-ch + Zone 2 speaker connection, 5.2.2-ch playback switching to 5.2-ch + Zone 2 playback*4
• Dedicated Zone 2 DAC supports synced/independent D/A audio distribution (including HDMI/SPDIF/NET*5) via Zone 2 speaker outputs and Zone 2 pre-out*6
• Share any MAIN audio source to a wireless headphone dock via Zone B line-out*6
• Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
• AccuEQ Room Calibration with subwoofer EQ and AccuReflex™
• Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog

Network & Multi-Zone Audio Features

• Isolated quad-core SoC board supports high-speed 802.11ac (2×2 MIMO*7) Wi-Fi®
• Supports Amazon Music HD*8, Spotify®, TIDAL, TuneIn, and Deezer*9
• Works with Sonos supporting multiple Sonos Connect/Port control and Volume Passthrough mode*10
• Works with Alexa supporting multi-room music*11
• Works with Ok Google*12 and Chromecast built-in™
• AirPlay 2 multi-room audio with Siri voice control
• DTS Play-Fi®*13 multi-room audio via Integra Music Control App*14
• Compatible with the Integra Remote app for iPad, iPhone, and Android™*14
• Roon Tested certified for the Roon Core
• Hi-Res Audio via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz*15, FLAC, WAV [RIFF], ALAC, and AIFF to 192 kHz/24-bit*16)

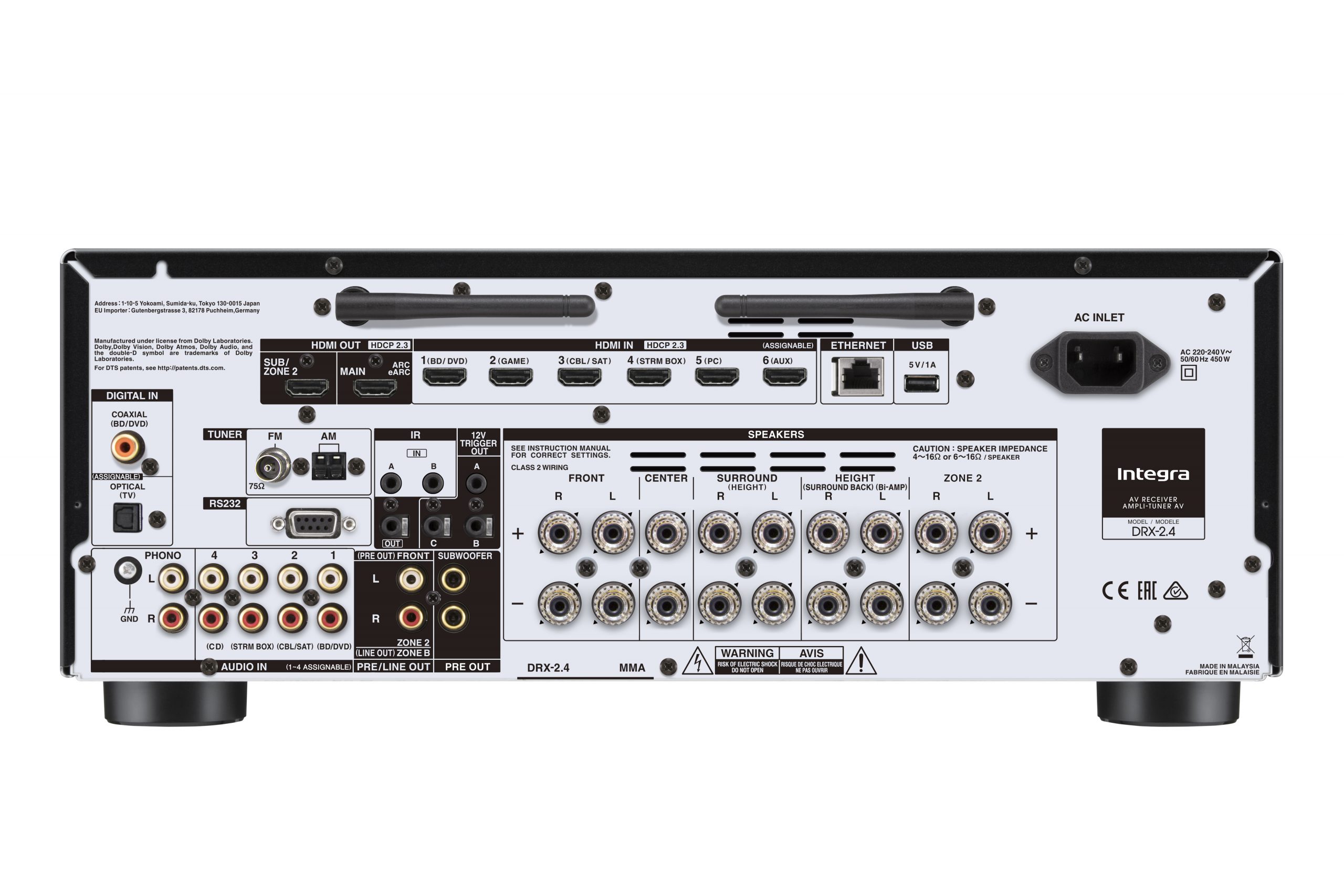

Audio-Video Connections

• 6 HDMI inputs, Main Out (eARC), Sub/Zone 2 Out
• 2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)
• 4 gold-plated analog RCA audio inputs (rear, assignable)
• Gold-plated phono input and built-in equalizer (MM) for turntable connection
• USB input (5 V/1 A) for audio playback (rear)
• Gold-plated 3.5 mm AccuEQ setup mic input (front)
• Gold-plated 6.35 mm headphone jack
• 9 gold-plated speaker posts with transparent knobs (including Zone 2)
• Dedicated gold-plated Zone 2 speaker outputs*4
• Gold-plated Front L/R pre-out, Zone 2 pre-out, and Zone B line-out (analog RCA*6)
• 2 subwoofer pre-outs
• Ethernet LAN terminal

Custom Integration Features

• 10BASE-T/100BASE-TX Ethernet supports setup and IP control via web browser
• Works with Crestron®, Control4®, Savant, URC, ELAN, and RTI automation
• RS-232 input for external control and automation
• 2 IR inputs and 1 output
• 3 programmable 12 V trigger-outs with adjustable delay (A: 100 mA, B: 25 mA, C: 25 mA)
• Dealer-settings memory storage and recall function
• AC inlet for detachable IEC power cable
• Optional rack-mount kit (IRK-155-3D)

Additional Features

• Aluminum front panel and volume knob
• One-touch volume memory preset assignment to individual A/V inputs via front panel
• Dolby® TrueHD and DTS-HD Master Audio® decoding
• OSD function displays A/V input signal data, output signal/settings data, and network information
• Advanced Music Optimizer™ improves compressed audio playback quality
• High-definition GUI over HDMI
• 4K to 8K, 1080p to 8K/4K video upscaling via HDMI
• Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 1 ms steps at 48 kHz*17)
• Sleep timer, HDMI passthrough, and network standby
• 40 FM/AM/internet radio presets with station-naming (10 characters)
• 3-Mode display dimmer (Normal/Dim/Dimmer)

*1 Features defined in HDMI 2.1 specification, HDR10+, and passthrough capabilities described are
supported on HDMI inputs 1–3, Main Out, and Sub/Zone 2 Out in Sub Mode output. *2 DSC signals only. *3
HDMI Zone 2 Mode output supports signals via HDMI inputs 1–3. *4 Playback via Height (5.2.2-ch layout) or
Surround Back (7.2-ch layout) speaker outputs is unavailable when playing in 5.2-ch + Zone 2 speaker output
mode. Output via Zone 2 speaker output and Zone 2 pre-out enabled. *5 Zone 2 HDMI audio is available
on inputs 1–3. SPDIF and HDMI support PCM signals only. *6 Zone 2 pre-out, Zone B line-out, and Front
L/R pre-out are exclusive modes shared on the same analog RCA output. *7 Some countries or regions
have regulations that affect wireless signal strength and the use of Wi-Fi channels. *8 Amazon Music HD is
supported via DTS Play-Fi. *9 Service availability varies with region, and a paid subscription may be required.
*10 Requires Sonos Connect or Port (sold separately). Connection of 1–2 Sonos devices is supported with
volume control enabled via the Sonos app. Sonos app available free for compatible iPhone and iPad at
the App Store. Available free for compatible Android™ devices at the Google Play Store. *11 Voice control
requires an Amazon Alexa enabled device. Alexa multi-room music may require a firmware update. *12 Voice
control requires a Google Assistant enabled device. *13 Enabled with a future firmware update. *14 Available
free for compatible iPhone, iPad, and Android devices. *15 Converted to PCM. Playback not guaranteed
via wireless LAN. *16 Supported sampling rates may vary depending on network environment. ALAC is
supported to a maximum 96 kHz. *17 Max. 400 ms (1 ms steps) at 96 kHz, and max. 200 ms (1 ms steps)
at 192 kHz.

Brand

INTEGRA

INTEGRA

The all new Integra range is now available at the largest AV showroom in the world, RIO Sound and Vision. Building quality AV Receivers and 2-channel amplifiers, Integra is one of the leading brands in amplification today. Using state-of-the-art technologies, Integra design and manufacture their products to suit their customers which is why RIO are proud to bring Integra into your home. Shop their full range now!

Integra has been synonymous with high fidelity since 1969, when the name identified industry-leading flagship amplifiers. Thirty years later in 1999, Integra launched as a standalone brand dedicated to emerging home installation markets with a range of solutions that dealers and installers could stake their reputations on.

Because of their close relationship with these professionals, the Integra lineup continues to evolve organically with the needs of a rapidly changing marketplace while exceeding the high expectations of their customers.

At the same time, they've led the industry by demonstrating how state-of-the-art technologies can improve lifestyles in tangible ways. They’ve powered innovation and backed it up with swift and reliable support. This philosophy has established Integra as a dominant player in tailored home entertainment solutions.

Additional information

Price Bracket

1500-1900

DRX-2.4

SPECIFICATIONS
Power Output
Front L/R:
160 W/Ch at 6 Ω, 1 kHz, 10%,
1 Channel Driven,
135 W/Ch at 6 Ω, 1 kHz, 1%,
1 Channel Driven, IEC
Dynamic Power:160 W (3 Ω, Front)
125 W (4 Ω, Front)
85 W (8 Ω, Front)
Input Sensitivity and Impedance:200 mV rms/47 kΩ (Line/Unbalance)
3.5 mV rms/47 kΩ (Phono MM)
THD+N (Total Harmonic Distortion + Noise):0.08% (20 Hz–20 kHz, Half Power)
Rated RCA Output Level and Impedance1 V rms/470 Ω
(Pre-out/Subwoofer Pre-out)
200 mV rms/470 kΩ (Zone B Line-out)
Phono Overload:70 mV (MM, 1 kHz, 0.5%)
Frequency Response:10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control:±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio:106 dB (IHF-A, Line)
80 dB (IHF-A, Phono)
Speaker Impedance:4 Ω–16 Ω
Tuning Frequency Range:FM 87.5 MHz–108 MHz
AM 522/530 kHz–1,611/1,710 kHz
FM/AM Preset Memory:40 Stations
Power Supply:AC 220–240 V~, 50/60 Hz
Power Consumption:450 W
Standby Power Consumption:0.15 W
Dimensions (W x H x D):435 x 174 x 376.5 mm
Weight9.8 kg
