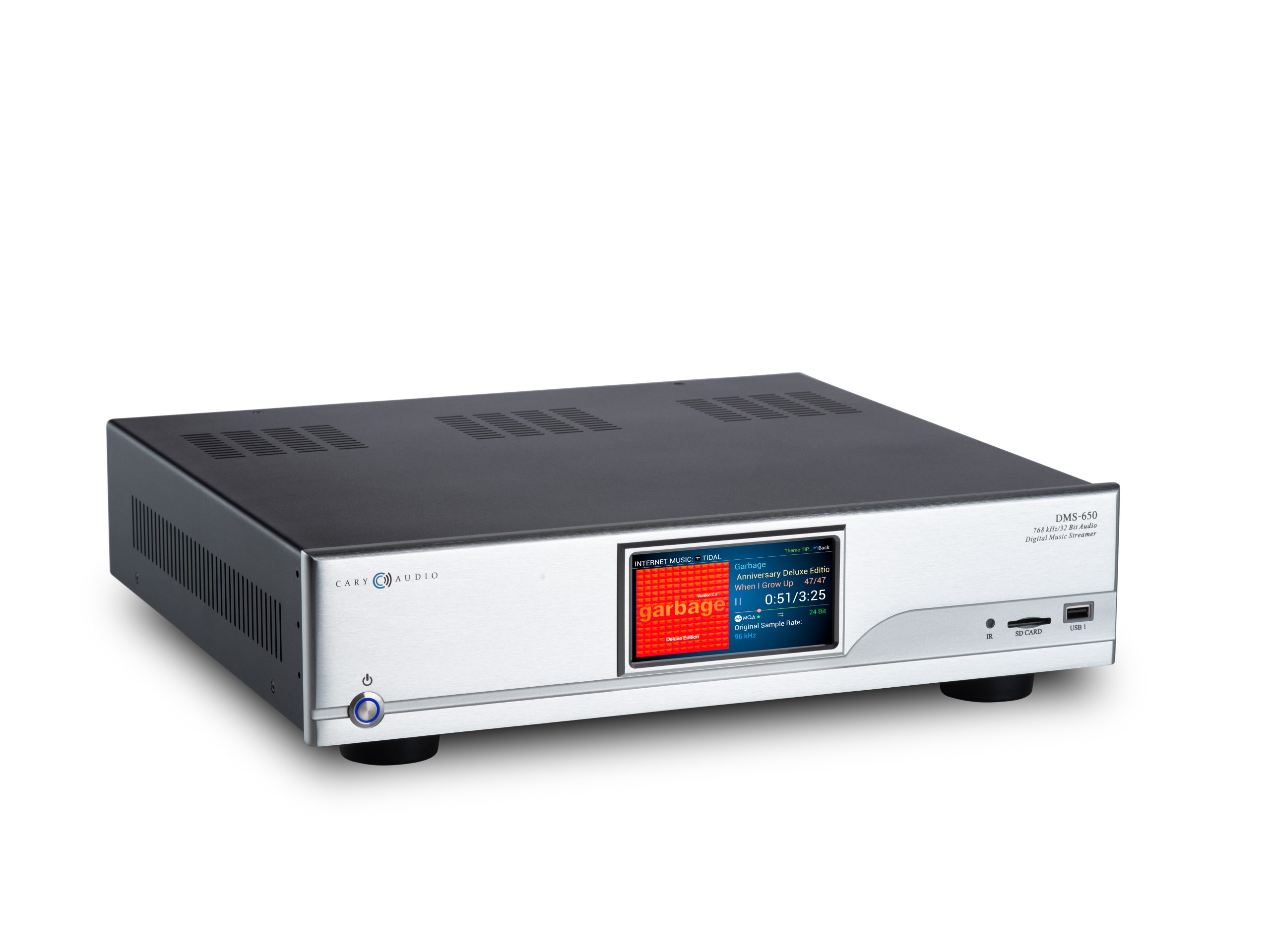

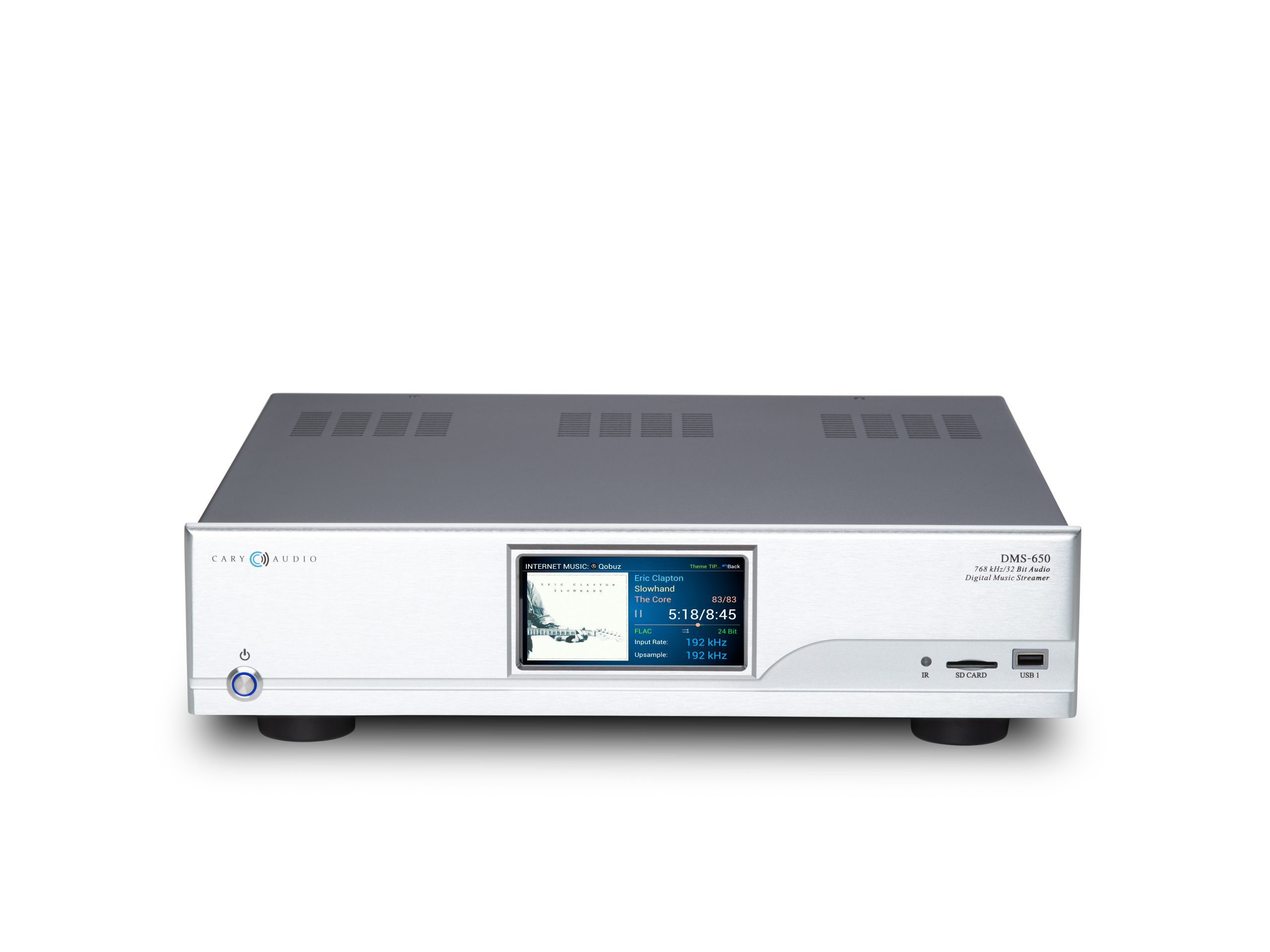

CARY AUDIO DMS-650 NETWORK AUDIO PLAYER | CARY AUDIO

$9,995.00

HIGH END NETWORK AUDIO PLAYER
MADE IN USA

SKU: CARY AUDIO DMS-650 NETWORK AUDIO PLAYER Categories: , , , Tag:
SHARE

ABOUT THE DMS-650 NETWORK AUDIO PLAYER

The DMS-650 is the latest product in our DMS platform. While it replaces the DMS-550, it surpasses the renown DMS-600 in performance. The DMS-650 packs a BIG punch! Much more so than just calling it a “replacement.” Built around the AK4497EQ VERITA DAC (same as our previous flagship DMS-600), the DMS-650 is a no-compromise killer. It delivers gorgeous clarity and richness with a sense of ease that Cary Audio is famous for. It combines wonderful amounts of detail and fantastic bass articulation yet retains a texture of naturalness that makes you forget you’re listing to a digital source, allowing you to fall back into your music. DMS customers are routinely taken aback at the foundation, dimensionality, openness, and transparent sound the DMS delivers. The DMS-650 is capable of native 32-bit / 768kHz PCM and DSD 512. It’s also Roon Ready and MQA Certified. Like other DMS products, the DMS-650 allows streaming from on-board TIDAL, Qobuz, Spotify, Spotify Connect, vTuner, or from files stored on a network computer or NAS Drive. If that wasn’t enough, it includes three (3) USB-A ports for listening from connected USB hard drives, flash drives, and even from a SD card. As an extra measure for convenience, the DMS-650 also includes aptX™ HD input and output (output for Bluetooth speakers or headphones) as well as Airplay.

The DMS-650 has a slight cosmetic redesign that features a black-out appearance (for black units), which includes a black display frame and black power button. For both black and silver units, the right-side groove now includes a “swoosh” design as well as a faceplate devoid of silkscreened logos for an ultra-clean sleek look.

Additional features include Ethernet or Wi-Fi connectivity, TruBit™ 7-step Selectable PCM upsampling to 768kHz, and selectable PCM to DSD conversion with selectable 3-step DSD upsampling. Digital inputs include Coaxial (x2), Optical (x1), and AES/EBU (x1) as well as Coaxial and Optical digital outputs, RCA and XLR fully balanced outputs, OSO™ Re-clocking, MU-MIMO Wi-Fi, and a full 3-volt output and variable volume control for direct-to-amplifier connection.

Master Clock Jitter

Below measurable levels

Digital Sampling Rates (Fs)

44.1 kHz to 768 kHz DSD64 to DSD512

Digital Filter

32-Bit 8x Oversampling Digital Filter

Digital/Analog Converters

2 – 2 channel AK4497EQ for working on true balanced output

BLUETOOTH

CSR Bluetooth v 4.0 with aptX® HD for 24 Bit / 48 kHz high definition audio decoder

Analog Filter

3rd Order Bessel

Analog Outputs

Balanced XLR, Single – Ended RCA

Digital Outputs

Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 386 kHz, 16 bit to 24 bit, DSD64, DSD128
Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 bit to 24 bit, DSD64

Digital Inputs

USB x 3, SD Card x 1
BLUETOOTH x1
AES/EBU x1, Coaxial x2, Toslink x1

Digital Input Sample Rate

USB/HDD operating at Sample Frequency (Fs) from 44.1 kHz to 768 kHz, 16 bit to 32 bit, DSD 64, 128, 256, 512.
BLUETOOTH Sample Frequency (Fs) 48 kHz, 24 bit.
AES/EBU, Coaxial operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16bit to 24 bit, DSD64 to DSD128
Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16bit to 24 bit, DSD64

Control

Trigger output 12VDC x1
IR control x1

Communication

Ethernet RJ45 full remote configuration interface
Wi-Fi 802.11 b/g/n/ac support MU-MIMO

Power Input

Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz

AC Power Requirements

45 Watts

Finish

Custom aluminum chassis and faceplate available in either Silver or Black anodized finish

Weight

28.6 lbs

Dimensions

3.75″ H x 17.25″ W x 16.25″ D

AUDIO (LPCM)

.

Amplitude Linearity

0.1 dB (20 Hz – 20 kHz)

Phase Linearity

3 degrees (20 Hz – 20 kHz)

Channel Separation

107 dB (1 kHz)

Total Harmonic Distortion

0.0004% (1 kHz)

NETWORK, USB, SD CARD PLAYBACK

.

Playback Format Supply

.dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf

Frequency Range

2 Hz – 100 kHz +/- 3.0 dB

Signal System

16, 20, 24, & 32 bit PCM and 1 bit DSD

Sampling Frequency

44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD

Dynamic Range

121 dB @1kHz XLR OUT

DSD System Clock

Frequency 22.5792 MHz

Audio Output Level

2.0V RMS (220 Ω output impedance) for Volume at 0.0dB
3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output

+/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB
+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

System Clock

Frequency 22.5792 MHz

Signal-to-Noise Ratio

115 dB

Brand

Colour

Black, Silver
