AR800 – Dolby Atmos & DTS-X Certifised Reflecting Speakers | CANTON


Dolby Atmos® DTS-X Multifunction-speaker

Engineering Principle

2-way closed

Nom. /Music power handling

60 / 100 watts

SPL (1 watt/1m)

86 dB

Frequency response

50…30.000 Hz

Crossover frequency

3.200 Hz


1 x 160 mm (6″), aluminium (Wavesurround)


1 x 25 mm (1″), fabric

Special Features

Dolby Atmos® technology
Reflection speaker for floorstanding- and compact speakers
Integrated wallmount for use as a Stereo Sound effect speaker
Removable fabric cover

Nominal Impedance

4…8 ohms

Dimensions (WxHxD)

17 x 26 x 14.5 cm
6.7″ x 10.2″ x 5.7″


3.6 kg

Carton Content

Canton AR-800 (Pair)
Equipment feet
Fabric grill



Speakertype and technique

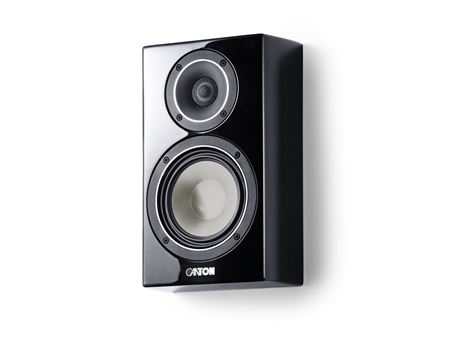

AR-800 is a 2-way compact speaker which is “Dolby Atmos and DTS-X Enabled”. It can be placed on top of an existing Front- or Rear- Floorstanding or compact speaker of your Home Cinema system or as an OnWall speaker with the integrated wallmount. Thanks to a special construction it allows a vertical Sounddimension. The result is real 3D-Sound. Listen to airplanes flying over you, rustling leaves over your head or rain pelts on your shoulders. In addition to attachmentspeaker on top your floorstanding- or compact speaker, AR-800 is thanks an integrated wall mount perfect for hanging on the wall. As an OnWall speaker AR-800 can be used as a Stereo- or effectspeaker in an existing system or only as a pair of stereo speakers.
Terminal and surfaces

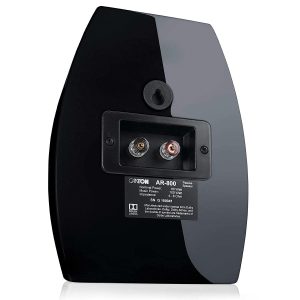

The stable gold-plated screw terminals, which accept cable sizes of up to 10 mm2, bring a high degree of conductivity and guarantee reliable long-term contact to ensure optimum signal transmission. Perfectly concealed in the cabinet (Hidden Connection), this allows it to be installed close to the wall. The loudspeakers of the Vento Series are lacquered, sanded and sealed with a high gloss lacquer in an eight-stage process. They are available in black and white “high gloss” finish. The high quality, acoustically neutral fabric covers hide the technology from view and can be elegantly attached using magnetic fastenings. The black and the white model of AR-800 are available with a black fabric cover.



Canton Speakers

CANTON since 1970 have been handcrafting their speakers and cabinets in Germany. Now available here in Australia, these speakers are truly a piece of workmanship and sound quality like no other. Experience CANTON in one of our showrooms or buy now online.
